Description

Connectivity

Interface: USB 2.0 for easy connectivity
Technology: Wired connectivity with WLAN interface
Maximum Data Transfer Rate: Up to 300 Mbit/s
Wi-Fi Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (Wi-Fi 4)
Wi-Fi Band: Single-band (2.4 GHz)
Frequency Range: 2.4 – 2.4835 GHz
Modulation Technologies: 16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM

Wireless Features

Security Algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Transmitting Power: CE/FCC: 20 dBm
Operating Modes: Infrastructure mode
Antenna Design: Internal antenna for reliable connectivity
LED Indicators: Status

Power and Design

USB Powered: Yes, operates directly from a USB port, requiring no external power source
Dimensions: 39 mm (Width) x 18.4 mm (Depth) x 7.87 mm (Height)
Weight: Lightweight at 2.1 grams (0.07 ounces)

System Requirements

Windows: Compatible with various versions including Windows 7, 8, 8.1, and XP
Mac OS: Compatible with Mac OS X 10.15 Catalina, 11.0 Big Sur, 12.0 Monterey, 13.0 Ventura

Operating Conditions

Operating Temperature: 0 – 40 °C
Storage Temperature: -40 – 70 °C
Operating Humidity: 10 – 90% RH non-condensing
Storage Humidity: 5 – 90% RH non-condensing

Package Contents

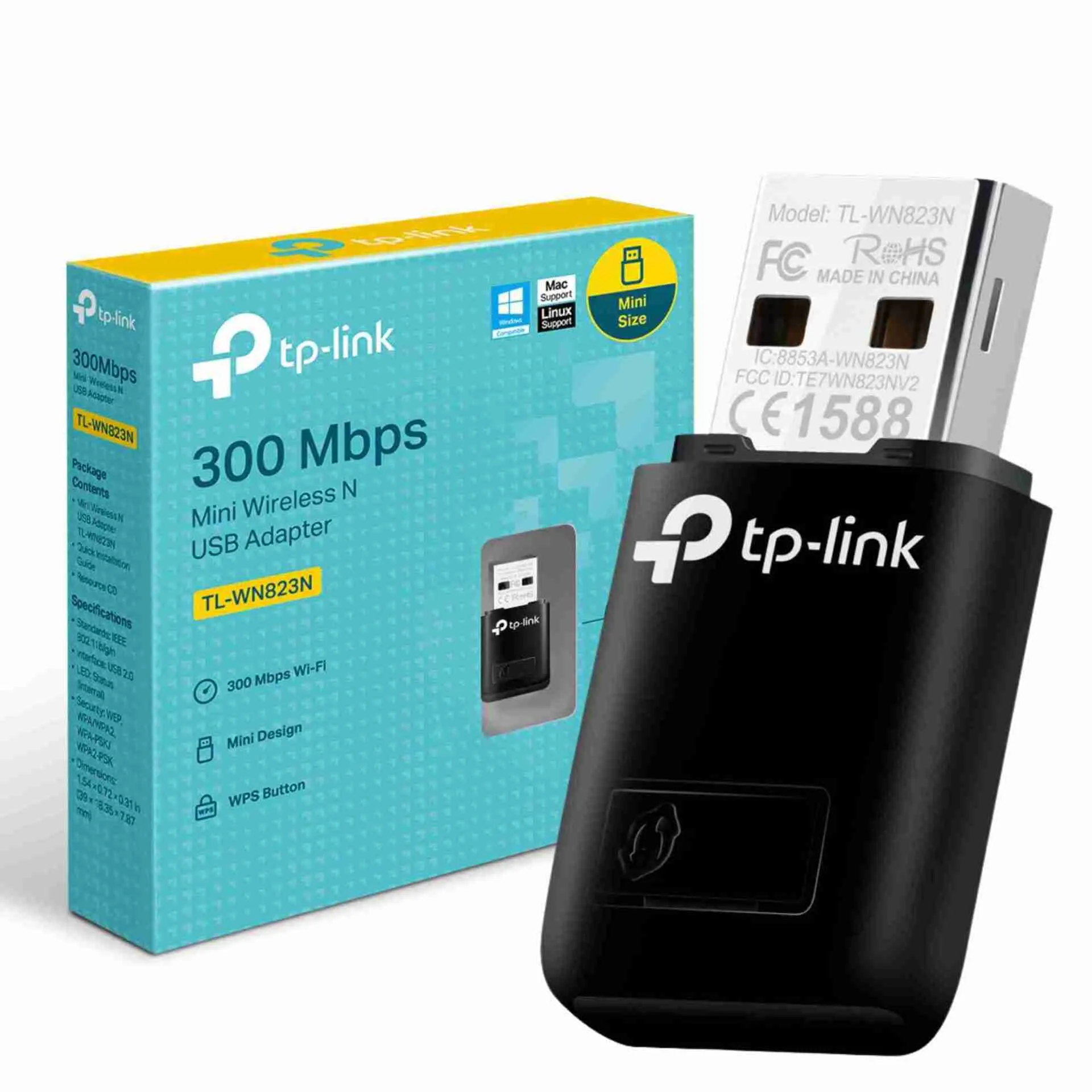

300Mbps Mini Wireless-N USB Adapter (TL-WN823N)
Resource CD
Quick Installation Guide

Compliance and Sustainability

Certificates: CE, FCC, RoHS certified
Sustainability Compliance: Yes
