Description

Interface: USB 2.0

LED: Status

Weight: 0.07 ounces / 2.1 grams (Without packaging)

Dimensions: (W x D x H) 0.73×0.59×0.28in. (18.6x15x7.1mm)

Antenna: Internal antenna

Wireless Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Frequency: 2.400-2.4835GHz

Signal Rate

11b: Up to 11Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11n: Up to 150Mbps (dynamic)

Reception Sensitivity

130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER

Transmit Power: <20dBm

Wireless Modes: Ad-Hoc / Infrastructure mode

Wireless Security: Supports 64/128 WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES), supports IEEE 802.1X

Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM

Certification: CE, FCC, IC, RoHS

Package Contents

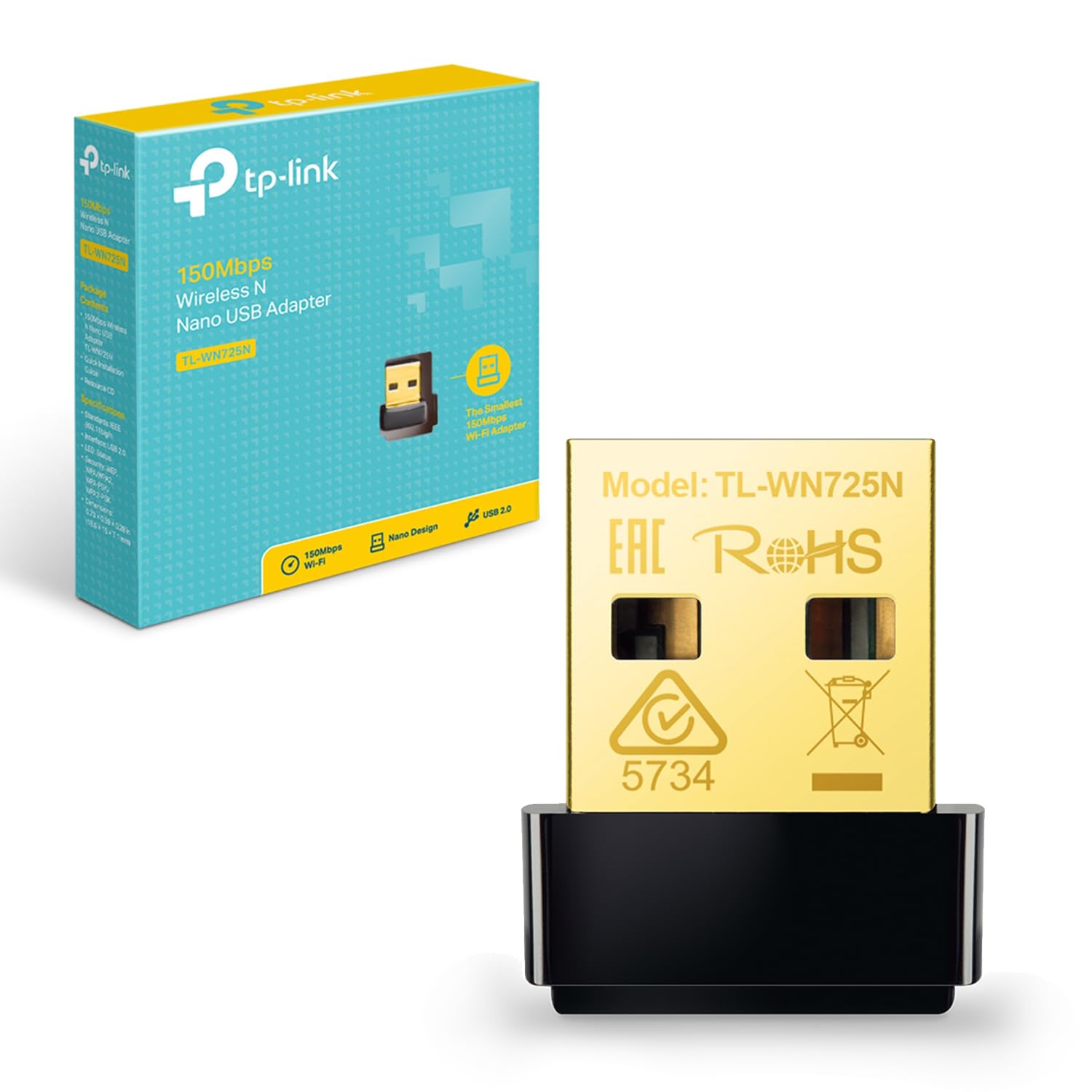

150Mbps wireless N Nano USB adapter TL-WN725N
Resource CD
Quick Installation Guide

System Requirements

Windows 8.1/8(32/64bits), Windows 7(32/64bits), Windows Vista(32/64bits),
Windows XP(32/64bits), Mac OS X 10.7~10.10, Linux

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
